Seguro Gate Valves

In stock

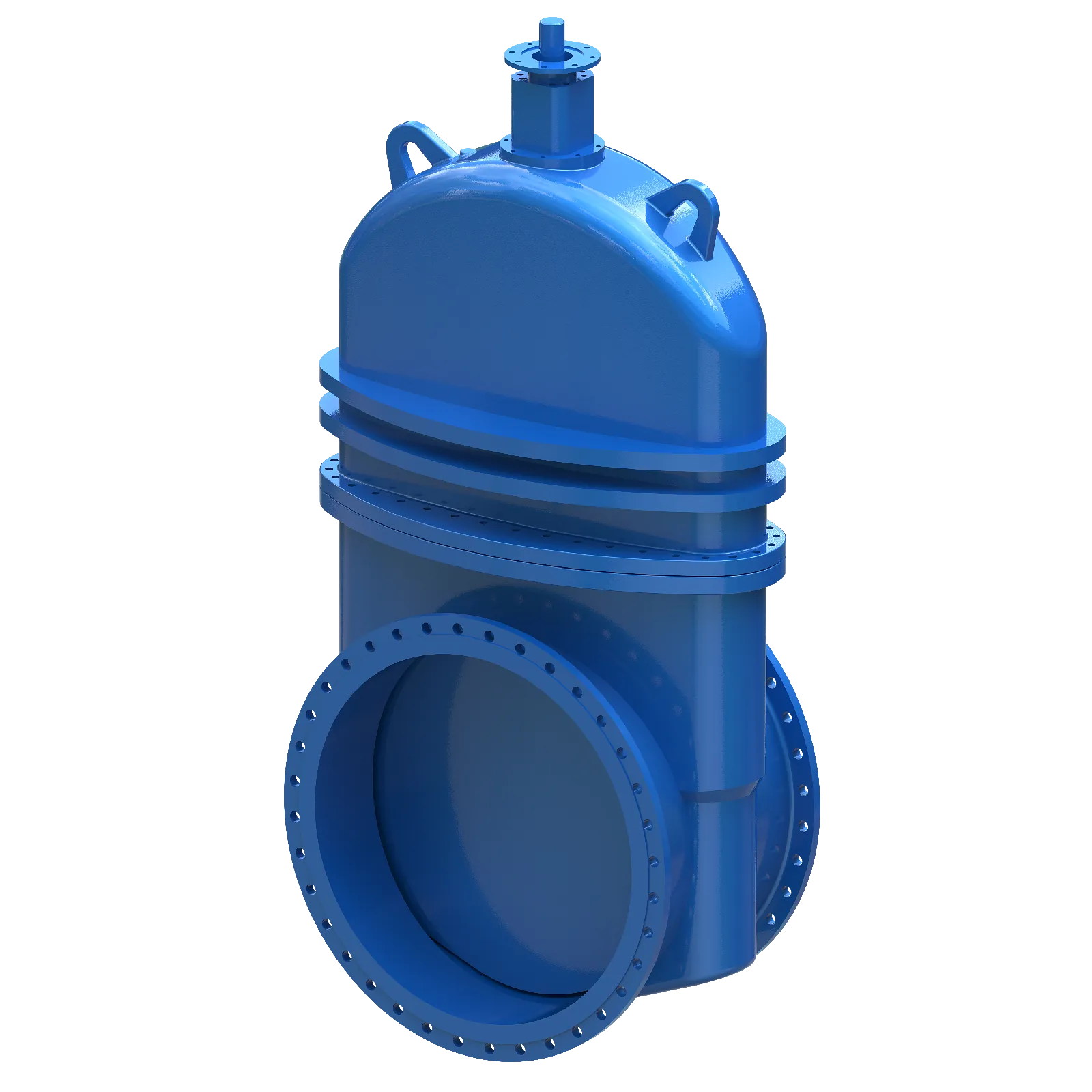

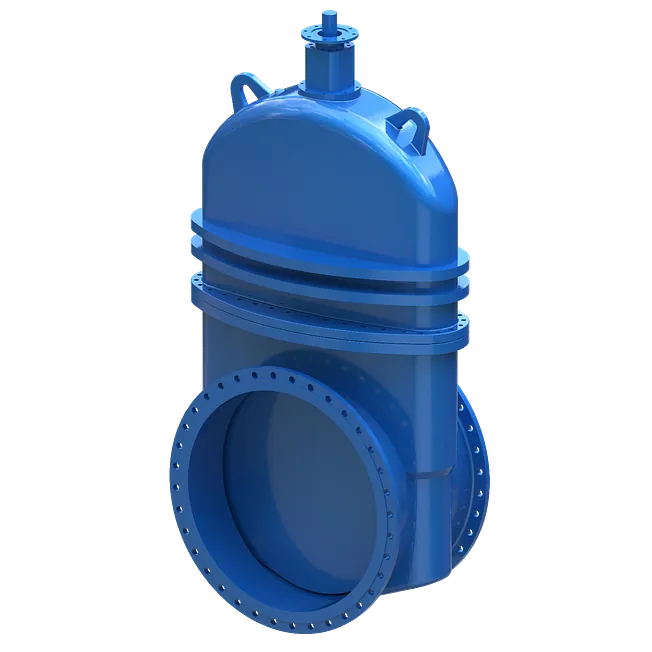

The AVM Seguro Gate Valve is a computer optimised streamlined design for low head loss. It is designed for the water and sewage industry.

Specifications

Size Range: DN 350 - DN 1600
Working pressure: PN 10 - PN 16
Medium: Water, Sewage

Features

  • Full-bore design
  • Low Head Loss
  • Low torque requirements
  • Special Soft Seat in Body
  • Flanged ends to EN 1092-2 PN 10 to PN 16 or ANSI Class 125 or 250
  • Aeration and drain taps
  • ISO 5210 top-flange is standard
  • Powder epoxy coating with drinking water certificate
