Swing Flex Check Valves

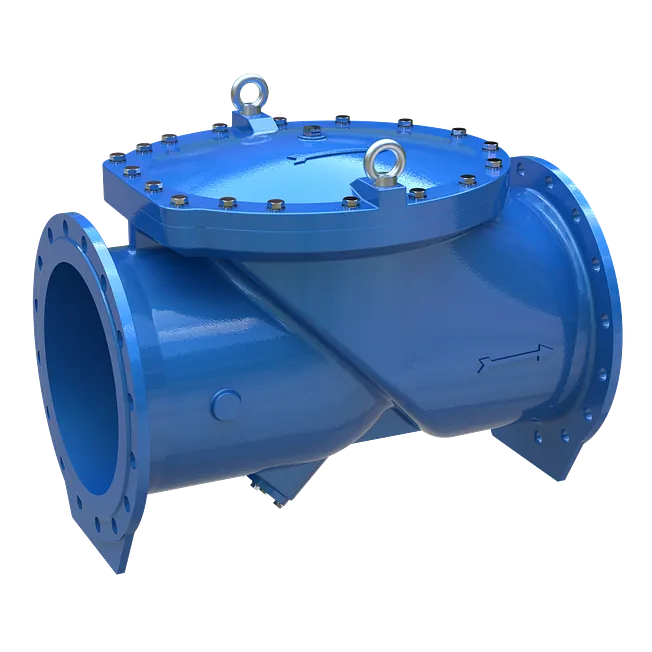

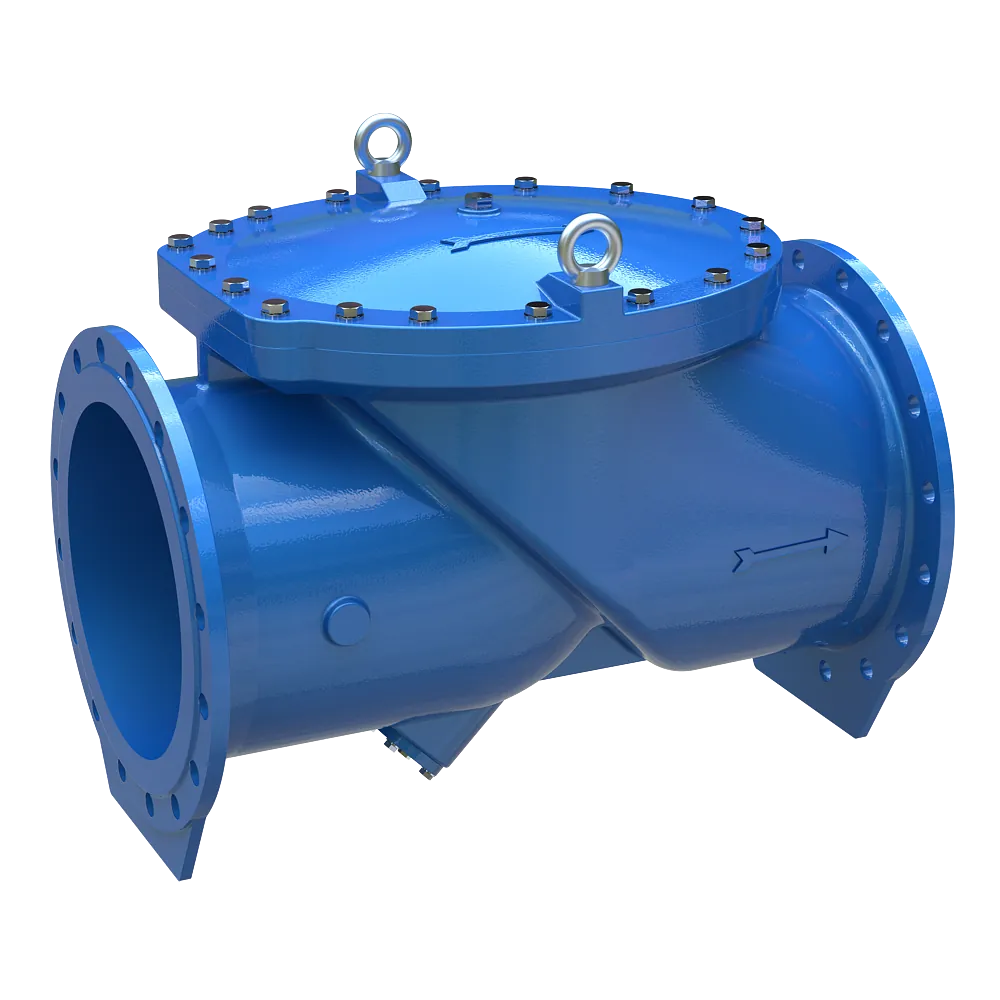

The AVM Swing Flex Check Valve is a computer-optimised, streamlined design for low head-loss. It is designed for the water industry, taking into account the best available technology, exceeding the requirements of EN 1074.

Specifications:

Size Range:             DN 50 - DN 9000
Working pressure:  PN 10 - PN 16
Design standards:  EN 1074
Medium:                  Water, Sewage, Saline Water

Features

• Large, rugged design
• Full bore design and streamlined disc results in low head-loss
• Top cover for easy maintenance
• Rubber Disc with Steel + Nylon Reinforcement
• Flanged ends to EN 1092-2 PN 10 to PN 16 or ANSI B16.5 Class 125, 250 or 300
• Powder epoxy coating with drinking water certificate

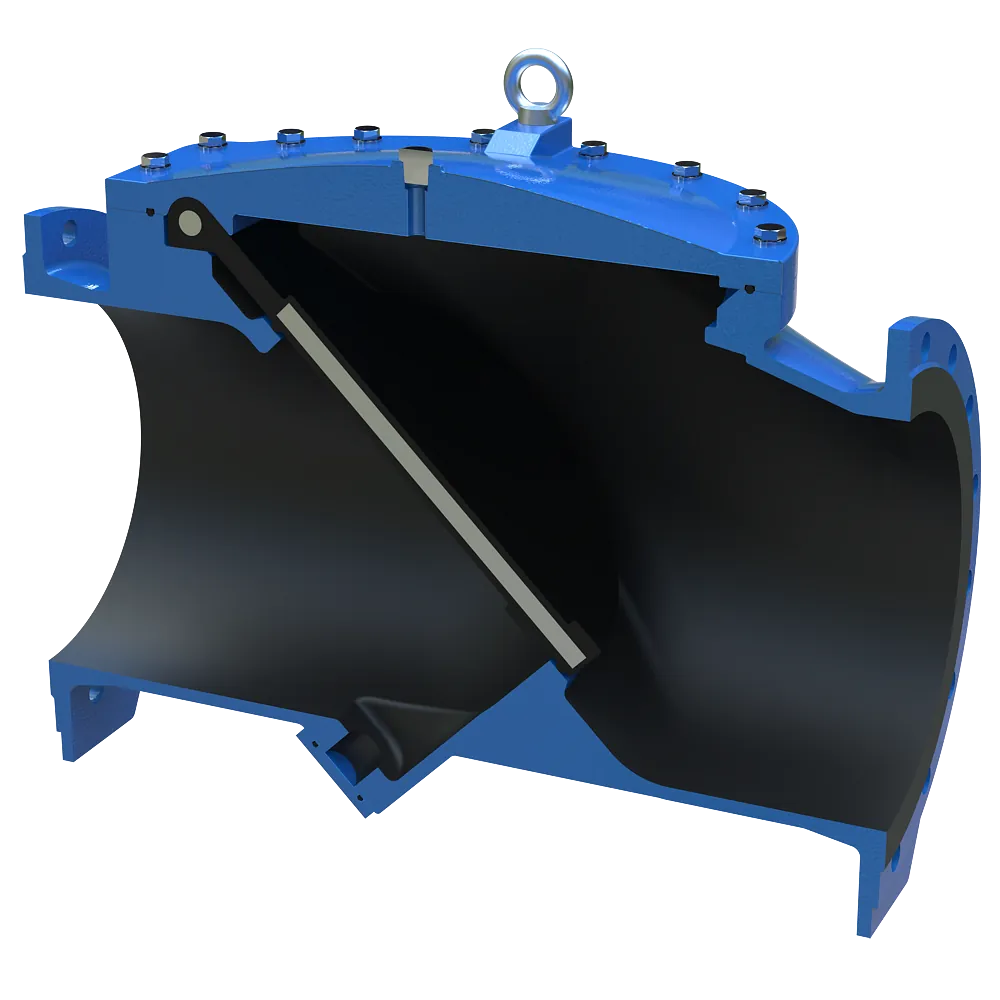

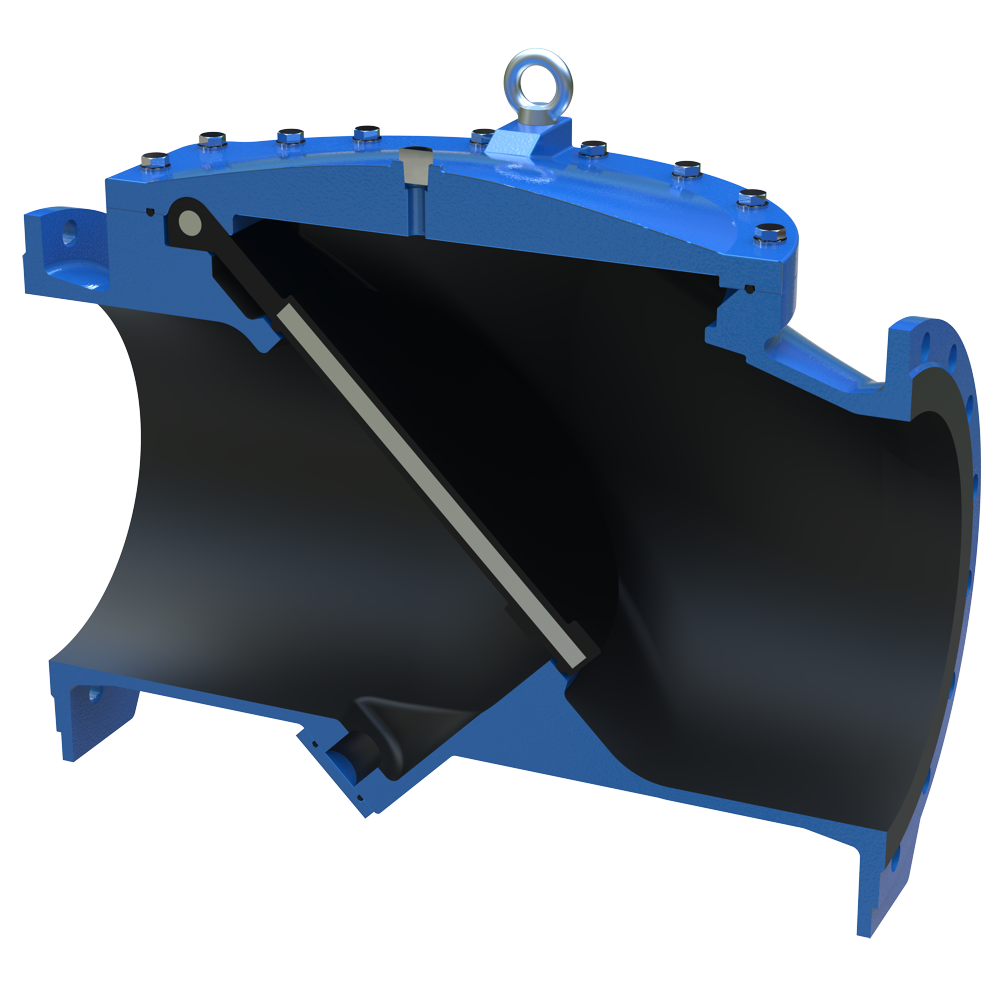

• Hard rubber lined option
• Option for:

1. Limit switches
2. Indicators
